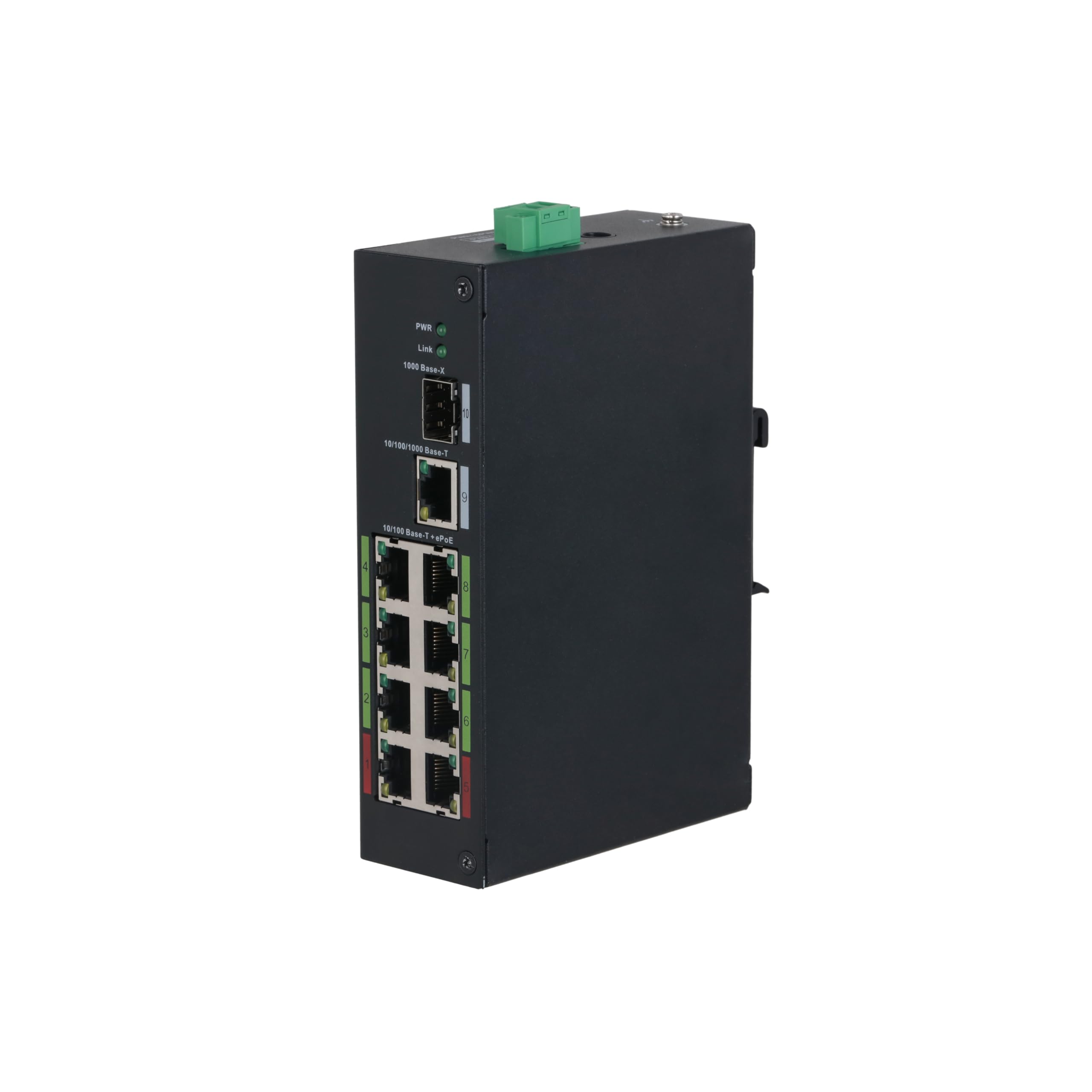

EPOE-8CH 10-Port Unmanaged Switch with 8-Port ePoE Supports long distance PoE transmission up to 800m with ePoEtechnology .Layer-two ePoE switch. MAC auto study and aging, MAC address list capacity is 8K. Complies with IEEE802.3, IEEE802.3u, IEEE802.3ab/z and IEEE802.3Xstandards. Supports IEEE802.3af, IEEE802.3at, IEEE802.3bt power supply standard. Industrial wide temperature design. Port indicator light is to display the status of current transmission modefor the port, which includes IEEE, E100 and E10. Hardware and Feature Included Power Adapter Yes PoE Yes Ethernet Port 8 Ethernet Port Speed 10/100 Mbps Ethernet Port Uplink Speed 10/100/1000 Mbps Optical Port Uplink Speed 1 Gbps Description of Function Slots Port 1-8: 8 × RJ-45 10/100 Mbps ; Port 9: 1 × RJ-45 10/100/1000 Mbps ; Port 10: 1 × SFP 1000 Mbps Power Supply External power supply: 54 VDC, 2.22 A Operating Temperature –30 °C to +65 °C (+22 °F to +149 °F) Operating Humidity 10%–90% (RH), non-condensing Power Consumption Idling: 3.2 W ; Full load: 120 W PoE Protocol IEEE 802.3af; IEEE 802.3at; Hi-PoE; IEEE 802.3bt PoE Power Port 1,5 ≤90 W ; Port 2,3,4,6,7,8 ≤30 W ; Total ≤120 W PoE Pin Assignment 1,2,4,5 (V+),3,6,7,8 (V-) ePoE Yes LongDistance PoE Transmission Yes Performance and General Layer Layer 2 Management Type No Smart Managed Switch No Switching Capacity 8.8 Gbps Packet Forwarding Rate 5.36 Mpps Packet Buffer Size 2.75 Mbit Jumbo Frame 9216 Byte MAC Table Size 8K Byte Communication Standard IEEE802.3, IEEE802.3u, IEEE802.3ab/z,IEEE802.3X Statics Protection Air discharge: 8 kV ; Contact discharge: 6 kV Lighting Protection Common mode: 4 kV ; Differential mode: 2 kV Net Weight / Gross Weight 0.6 kg (1.32 lb) / 1.9 kg (4.18 lb) Product Dimensions 150 mm × 100 mm × 42 mm (5.91" × 3.94" × 1.65") (L × W × H) Packaging Dimensions 265 mm × 238 mm × 76 mm (10.43" × 9.37" × 1.65") (L × W × H) Casing Material Iron Installation Rack mount; DIN guide rail mount Installation Panels Dimensions (mm[inch]) More Parameters
